Everything you need to know about the Volvo FM, in detail.
Find specifications about engines, transmissions, rear axles (including ratios), powertrain combinations and power take-offs.
Net output according to: EC 582/2011

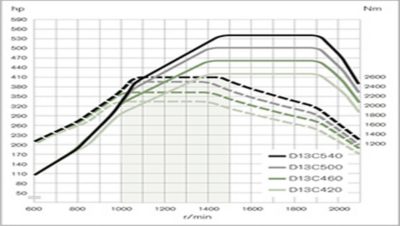

D11 – power/torque
Net output according to: EC 582/2011
D13 – power/torque
Net output according to: EC 582/2011
Electric | Volvo FM |
|---|---|
Performance | Up to 330–490 kW (450–666 hp) continuous power |
Range | Up to 300 km range |
Charging time (full charge) | 9.5h with AC (43 kW) 2.5h with DC (250 kW) |
Battery capacity | 180–540 kWh, 2–6 batteries |
Driveline | 2–3 electric motors, I-Shift gearbox |
Gas-powered | G13 | ||
|---|---|---|---|
Emission standard | Euro 6 | ||
No. of cylinders | 6 | ||
Displacement | 12.8 dm³ | ||
Stroke | 158 mm | ||
Bore | 131 mm | ||
Compression ratio | 17.0:1 | ||
Economy revs | 900–1400 r/min | ||
Exhaust brake effect | 200 kW | ||
Engine brake effect* | 380kW (2300 r/min) | ||
Oil filters | 2 full-flow | ||
Oil change volume, incl. filter | 35 l | ||
Cooling system, total volume | 38 l | ||
*option
G13 420 hp (309 kW) |
| |||
|---|---|---|---|---|
Max power at 1600–1700 r/min | 420 hp | |||
Max torque at 905–1400 r/min | 2100 Nm | |||
G13 460 hp (338 kW) |
| |||
Max power at 1600–1700 r/min | 460 hp | |||
Max torque at 950–1400 r/min | 2300 Nm | |||
G13 500 hp (368 kW) | ||||
Max power at 1600-1700 r/min | 500 hp | |||
Max torque at 980-1404 r/min | 2550 Nm | |||
Diesel | D11 | D13 | |
|---|---|---|---|
Emission standard | Euro 3, 5 & 6 | Euro 3, 5 & 6 | |
No. of cylinders | 6 | 6 | |
Displacement | 10.8 dm³ | 12.8 dm³ | |
Stroke | 152 mm | 158 mm | |
Bore | 123 mm | 131 mm | |
Compression ratio | 18.0:1 | 18.0:1 | |
Economy revs | 1000–1500 r/min | 900–1400 r/min | |
Exhaust brake effect | 155 kW | 175 kW | |
Engine brake effect* | 270 kW (2300 r/min) | 340 kW (2300 r/min) | |
Oil filters | 2 full-flow | 2 full-flow | |
Oil change volume, incl. filter | 35 l | 35 l | |
Cooling system, total volume | 22 l | 24 l | |
*option
Fuel prerequisites
Sulphur free fuel (EN590, max 10 ppm sulphur) Bio-diesel generation 2 (EN15940, syntetic diesel) Volvo FM gas-powered automotive quality.
D11 330 hp (246 kW) | Euro 6 | |||
|---|---|---|---|---|
Max power at 1700 r/min | 330 hp | |||
Max torque at 877–1400 r/min | 1600 Nm | |||
D11 380 hp (279 kW) | Euro 6 | |||
Max power at 1700 r/min | 380 hp | |||
Max torque at 938–1400 r/min | 1800 Nm | |||
D11 430 hp (317 kW) | Euro 6 | |||
Max power at 1700 r/min | 430 hp | |||
Max torque at 1008–1400 r/min | 2050 Nm |
D11 460 hp (338 kW) | Euro 6 | |||
|---|---|---|---|---|
Max power at 1700 r/min | 460 hp | |||
Max torque at 1050–1400 r/min | 2200 Nm | |||
D11 330 hp (243 kW) | Euro 3 | |||
Max power at 1950 r/min | 330 hp | |||
Max torque at 1000–1300 r/min | 1650 Nm | |||
D11 370 hp (273 kW) | Euro 3 | |||
Max power at 1900 r/min | 370 hp | |||
Max torque at 1000–1400 r/min | 1770 Nm | |||
D13 420 hp (309 kW) | Euro 6 | |||
Max power at 1404–1700 r/min | 420 hp | |||
Max torque at 905–1400 r/min | 2100 Nm | |||
D13 460 hp (338 kW) | Euro 6 | |||
Max power at 1404–1700 r/min | 460 hp | |||
Max torque at 945–1400 r/min | 2300 Nm |
D13 500 hp (368 kW) | Euro 6 | |||
|---|---|---|---|---|
Max power at 1404–1700 r/min | 500 hp | |||
Max torque at 980–1400 r/min | 2500 Nm | |||
D13 540 hp (397 kW) | Euro 6 | |||
Max power at 1458–1700 r/min | 540 hp | |||
Max torque at 1000–1400 r/min | 2600 Nm | |||
D13 420 hp (309 kW) | Euro 5 | |||
Max power at 1900 r/min | 420 hp | |||
Max torque at 1000–1400 r/min | 2100 Nm | |||
D13 460 hp (338 kW) | Euro 5 | |||
Max power at 1900 r/min | 460 hp | |||
Max torque at 1000–1400 r/min | 2300 Nm | |||
D13 500 hp (368 kW) | Euro 5 | |||
Max power at 1900 r/min | 500 hp | |||
Max torque at 1050–1400 r/min | 2500 Nm | |||
D13 540 hp (397 kW) | Euro 5 | |||
Max power at 1900 r/min | 540 hp | |||
Max torque at 1050–1400 r/min | 2600 Nm | |||
D13 400 hp (294 kW) | Euro 3 | |||
Max power at 1800 r/min | 400 hp | |||
Max torque at 1050–1400 r/min | 2000 Nm | |||
D13 440 hp (324 kW) | Euro 3 | |||
Max power at 1800 r/min | 440 hp | |||
Max torque at 1050–1400 r/min | 2200 Nm | |||
D13 480 hp (353 kW) | Euro 3 | |||
Max power at 1800 r/min | 480 hp | |||
Max torque at 1050–1400 r/min | 2400 Nm | |||
D13 520 hp (382 kW) | Euro 3 | |||
Max power at 1800 r/min | 520 hp | |||
Max torque at 1050–1450 r/min | 2500 Nm | |||
12-speed splitter and range gearbox with automated gear changing system. I-Shift can be fitted with a compact retarder, power take-off, emergency power steering pump and oil cooler. It’s also possible to order I-Shift with crawler gears, ultra-low crawler gears and reverse multispeed.
Type | Top Gear | Max torque (Nm) | GCW approval (t) |
|---|---|---|---|
AT2412 | Direct | 2400 | 44 |
AT2612 | Direct | 2600 | 100 |
ATO2612 | Overdrive | 2600 | 100 |
Type | Top Gear | Engine torque (Nm) | GCW approval (t) |
|---|---|---|---|
SPO2812 | Overdrive | 2800 | 80 |
Type | Axle | Gear | Max torque (Nm) | Max axle/bogie load (t) | GCW approval (t) |
Single reduction | |||||
|---|---|---|---|---|---|
RSS1244 | Solo | Hypoid | 2800 | 13 | 44 |
RSS1344C/E | Solo | Hypoid | 2600 | 13 | 44 |
RSS1352A | Solo | Hypoid | 2800 | 13 | 52 |
RSS1370A/B | Solo | Hypoid | 3800 | 13 | 70 |
RTS2370A | Tandem | Hypoid | 3800 | 23 | 80 |
RTS2310 | Tandem | Hypoid | 3800 | 23 | 100 |
Hub reduction | |||||
RSH1365 | Solo | Conical spiral cut | 3800 | 13 | 65 |
RSH1370F | Solo | Conical spiral cut | 3800 | 13 | 70 |
RTH2610B/F | Tandem | Conical spiral cut | 3800 | 26 | 100 |
RTH3210 | Tandem | Conical spiral cut | 3800 | 32 | 100 |
RTH3312 | Tandem | Conical spiral cut | 3800 | 33 | 120 |
RTH3815* | Tandem | Conical spiral cut | 3800 | 38 | 150 |
* For Volvo FM 4x4.
RSS1244 | RSS1344C/E | RSS1370A/B | RSH1370F | RSH1365* |
|---|---|---|---|---|
2.06:1 | 2.06:1 | 2.47:1 | 3.46:1 | 3.61:1 |
2.17:1 | 2.17:1 | 2.64:1 | 3.61:1 | 3.76:1 |
2.31:1 | 2.31:1** | 2.85:1 | 3.76:1 | 4.12:1 |
2.47:1 | 2.47:1** | 3.08:1 | 4.12:1 | 4.55:1 |
2.64:1 | 2.47:1 | 3.40:1*** | 4.55:1 | 5.41:1 |
2.85:1 | 2.85:1 | 3.67:1*** | 5.41:1 |
|
3.08:1 | 3.08:1 | 4.11:1*** |
|
|
| 3.36:1 |
|
|
|
3.70:1 |
| |||
4.11:1 |
| |||
4.63:1 | ||||
5.29:1 | ||||
* Available for Volvo FM 4x4
** For RSS1344E
*** For RSS1370B
RST2370A | RTS2310 | RTH2610F | RTH3210 | RTH3312 | RTH3815 |
|---|---|---|---|---|---|
2.43:1 | 2.06:1 | 3.33:1 | 3.33:1 | 3.61:1 | 4.14:1 |
| 2.57:1 | 2.17:1 | 3.46:1 | 3.46:1 | 3.76:1 | 4.58:1 |
2.83:1 | 2.31:1 | 3.61:1 | 3.61:1 | 4.12:1 | 5.43:1 |
3.09:1 | 2.47:1 | 3.76:1 | 3.76:1 | 4.55:1 | 7.22:1 |
3.40:1 | 2.64:1 | 3.97:1 | 3.97:1 | 5.41:1 | |
3.78:1 | 2.85:1 | 4.12:1 | 4.12:1 | 6.18:1 | |
4.13:1 | 3.08:1 | 4.55:1 | 4.55:1 | 7.21:1 | |
4.50:1 | 3.36:1 | 5.41:1 | 5.41:1 | ||
5.14:1 | 3.70:1 | 6.18:1 | 6.18:1 | ||
5.67:1 | 4.11:1 | 7.21:1 | |||
6.17:1 | 4.63:1 | ||||
| D11 330 hp | D11 370 hp | D11 410 hp | D11 450 hp | D13 420 hp | D13 460 hp | D13 500 hp |
I-Shift | |||||||
|---|---|---|---|---|---|---|---|
AT2412 | • | • | • | • | • | • | • |
AT2612 | • | • | • | • | • | • | • |
ATO2612 | • | • | • | • | • | • | • |
I-Shift Dual Clutch | |||||||
SP02812 |
|
|
|
|
| • | • |
Single reduction axles | |||||||
RSS1244 | • | • | • | • | • | • | • |
RSS1344C/E | • | • | • | • | • | • | • |
RSS1352A | • | • | • | • | • | • | • |
RSS1370A/B | • | • | • | • | • | • | • |
RTS2370A | • | • | • | • | • | • | • |
RSS2310A | • | • | • | • | • | • | • |
RSH1365 | • | • | • | • | • | • | • |
Hub reduction axles | |||||||
RSH1370F | • | • | • | • | • | • | • |
RTH2610F | • | • | • | • | • | • | • |
RTH3210 | • | • | • | • | • | • | • |
RTH3312 | • | • | • | • | • | • | • |
RTH3815 | • | • | • | • | • | • | • |
| G13 420hp | G13 460hp | G13 500hp |
I-Shift | |||
|---|---|---|---|
AT2412 | • | • |
|
AT2612 | • | • | • |
ATO2612 | • | • | • |
Single reduction axles | |||
RSS1244 | • | • | • |
RSS1344C/E | • | • | • |
RSS1352A | • | • | |
RSS1370A/B | • | • | • |
RTS2370A | • | • |
|
RTS2310A | • | • | • |
Hub reduction axles | |||
RSH1370F | • | • | • |
RTH2610F | • | • | • |
| Torque output | Ratio | |
|---|---|---|---|
EPTT350 | 350 Nm* | 1.26:1 | |
EPTT650 | 650 Nm* | 1.26:1 | |
EPTT1000 | 1000 Nm* | 1.26:1 | |
* Torque output both when driving and standing still.
PTER-DIN: Rear-mounted engine power take-off for direct drive of a
hydraulic pump.
PTER1400: Rear-mounted engine power take-off with flange connection
for hydraulic pump.
PTER100: Rear-mounted engine power take-off with flange connection
for hydraulic pump.
PTR-F: Connecting flange attachment and low-rev or high-rev.
PTR-FL/FH: Connecting flange attachment and low-rev or high-rev.
PTR-D/PTR-DM/PTR-DH: Low/medium/high-rev with DIN-connection for direct attachment of a hydraulic pump.
PTRD-F: High-rev with connecting flange attachment for direct-fitted propshaft.
PTRD-D: High-rev with dual drive. DIN connection front and rear for direct attachment of hydraulic pumps.
PTRD-D1: High-rev with dual drive. Connecting flange attachment at the rear and DIN attachment at the front.
PTRD-D2: High-rev with dual drive rear and single drive front. Two connecting flange attachments rear and one DIN attachment at the front.
Find specifications about cab measurements, cab heights above the ground and features.
Two different versions of exterior trim are available to suit different needs.
Basic
Thunder gray grille and door handles. Chrome headlamps. Lightning gray sun visor, mirror covers and bumper.
Enhanced
Thunder gray grille. Cab colored mirror covers, door handles, sun visor and bumper. Chrome headlamps.
Volvo FM is available with five different interior trim levels to suit different needs.
Textile trim Dynamic
Textile interior with a modern color scheme and durable materials in various shades of gray and purple.
Vinyl and textile trim Robust
Durable materials in vinyl and textile with a modern color scheme that matches the various parts of the interior trim.
Plush trim Progressive
This plush interior trim with soft textiles offers a modern color scheme and matches the various parts of the interior trim.
Leather trim Robust
Interior with durable materials and two-colored all-leather seats that matches the various parts of the interior trim.
Leather trim Progressive
Interior with durable materials and two-colored all-leather seats that matches the various parts of the interior trim.
Day cab
Day cab (FM-DAY) with comfortable and ergonomic driver area. Interior height 164 centimetres: 120 centimetres on the engine compartment cover.
Low day cab
Low day cab (FM-LDAY) is needed for applications such as mining, refrigerated bodies, pumps and cranes. Interior height 148 centimetres: 104 centimetres on the engine compartment cover.
Sleeper cab
Sleeper cab (FM-SLP) with comfortable overnight accommodation for one person. Interior height 164 centimetres: 120 centimetres on the engine compartment cover.
Low sleeper cab
Low sleeper cab (FM-LSLP) with lowered roof provides added load space above the cab. Interior height 148 centimetres: 104 centimetres over the engine compartment.
Globetrotter cab
Globetrotter cab (FM-HSLP) offering comfortable overnight accommodation for up to two people. The cab features extra storage space higher up. Interior height 201 centimetres: 157 centimetres on the engine compartment cover.
Crew cab
Crew cab with ample space for several additional passengers up to 7 persons. Interior height 1590 millimetres.
Four-point cab suspension
Choose from coil springs with dampers, front coil springs and rear air suspension, or air suspension all round.
Air intakes
Air intake positioned on the left side and available in high or low placement options. Front air intake also available.
Cab Colors
Around 650 variants to choose from.
Driver’s seat
Choose from three different levels of comfort: Progressive (plush or leather),Dynamic (textile) and Robust (vinyl). The seat’s total adjustment scope is 200 millimetres fore-aft, and 100 millimetres vertically. The driver’s seat is fitted as standard with a head restraint, adjustable and fold-down backrest, vertical and fore-aft adjustment, adjustable lumbar support and adjustable seat angle.
Passenger seat
Choose from three different levels of comfort: Progressive (plush or leather),Dynamic (textile) and Robust (vinyl). Equipped as standard with head restraints.
Beds
Lower bed measuring 70×200 centimetres.16 centimetres mattress with pocket springs and excellent comfort. Three varieties to choose from: Soft, Semi-firm and Firm.Two types of overlay mattress protector available, that improve comfort and help you make the bed more easily. Comfort upper bed dimensions: 70×190 centimetres or 60×190 centimetres
Interior storage
The space above the windscreen consists of two storage compartments with roller doors as well as four ISO slots, one of which is saved for the tachograph (two ISO slots on the low cabs). Under the bed in the sleeper cab and the Globetrotter cab you will find two large storage compartments, accessible from the outside and one large (44 l volume) accessible by lifting the mattress and lid; in the sleeper section you can find two storage spaces for magazines and small items. The dashboard contains four open storage spaces, a small storage box, a DIN slot storage, a bird bath and a bottle holder. The day-cab can be fitted with 60 litres storage with jalousie openings for helmets, lunch boxes etc.
Exterior storage
Storage space accessible from the outside can be found behind the passenger and driver seats.
Roof hatch
The cab is equipped with a roof hatch that can be opened 50 millimetres. On the inside there is a perforated sunblind, which also acts as an insect net when the hatch is open. The roof hatch can be manually or electrically manoeuvred (option). A roof hatch in steel is also available, intended for construction or rough usages.
Steering wheel
Comes in two different sizes – 450 mm or 500 mm in diameter, depending on your truck's specification. The steering wheel’s height can be adjusted by up to 90 mm and the angle can be adjusted by 28°. With neck tilt (option) the steering wheel can be adjusted in vertical position between -5° and +15° – increasing the driver comfort. The steering wheel is available with or without an airbag. Integrated controls in the steering wheel provide safe and comfortable operation of cruise control, horn, phone and the functions in the Instrument Display and Side Display.
Climate system
Two alternative climate systems cover all needs:
The climate system can also be complemented with cab and engine parking heaters.
Find specifications about chassis heights, max front axle load, rear suspension, coupling heights, tractors, chassis features and brakes.
X-Low (tractor) | approx 810 mm |
Low | approx 850 mm |
Med | approx 900 mm |
High | approx 1000 mm |
X-High | approx 1200 mm |
| Air | Leaf |
|---|---|---|
X-Low | 8 | - |
Low | 8 | - |
Med | 10/20* | 9 |
High | 10/20* | 10/20* |
X-High | - | 10/20* |
*With dual front axles FAL20
Type | Axels | Suspension | Axel/bogie load | Reduction | Pusher / tag axels |
Solo | |||||
|---|---|---|---|---|---|
RAD-L90 | 4x2 | Parabolic/Multi-leaf | 13 t | Single/hub |
|
RAD-GR | 4x2 | Air | 11.5/13 t | Single/hub |
|
RAD-G2 | 4x2 | Air (for construction) | 13 t | Hub | |
RAD-G4 | 4x2 | Air | 12 t | Single | |
Bogie | |||||
RADT-GR | 6x2/8x2 | Air | 19/20.5/22.5/23 t | Single/hub | Tag axle (fixed/steered/self-steered) |
RAPD-GR | 6x2 | Air | 16/19/22 t | Single/hub | Pusher axle (fixer/steered) |
RAPD-G4 | 6x2 | Air | 16t | Single | Pusher axle (fixed) |
RADD-G2 | 6×4/6x6/8x4/8x6 | Air | 21/23/26 t | Single/hub | |
RADD-BR | 6×4/8x4 | Parabolic | 20/21 t | Single/hub | |
RADD-TR1 | 6×4/8×4 | Parabolic/Multi-leaf | 23/26 t | Single/hub | |
RADD-TR2 | 6×4/8×4 | Multi-leaf | 26/32 t | Hub | |
RADD-TR3 | 6×4/8×4 | Parabolic | 38 t | Hub | |
RADD-GR | 6×4/8×4 | Air | 17/21/23/26 t | Single/hub | |
RADDT-GR | 8×4/10x4 | Air | 27/33/36 t | Single/hub | Tag axle (steered) |
| RAPDD-GR | 8×4 | Air | 27/30.5/32/35 t | Single/hub | Pusher axle (steered) |
RAPDT-GR | 8×2 | Air | 27/30/30.5/31.5/32 t | Single/hub | Pusher axle (steered), tag axle (fixed/steered) |
RADDT-G2 | 8×4/10x4/10x6 | Air | 27/33/36 t | Single/hub | Tag axle (steered) |
Centrally mounted, semi-undermounted and undermounted towbars for centre-axle trailers. Towbars can be fitted at intervals of 25 millimetres.
Fuel tanks
Aluminium or steel tanks in volumes from 150 to 900 litres. Maximum fuel volume is 1510 litres for a 4x2 tractor. Gas tanks in sizes 155 kg (375 l), 205 kg (495l) and 225 kg (545 l). For double front axles EU6 plastic fueltank between front axles.
AdBlue tanks
Volumes from 32 to 112 litres. AdBlue pump is integrated in AdBlue tank module. Plastic.
Brakes
EBS (Electronically-controlled Brake System) provides superior response, performance and brake feel, while providing access to a number of handy features. EBS is now available both for disc brakes and Z-cam drum brakes (for a selected range of axle configurations and chassis heights). Upgrade your brake system by adding the EBS Medium package or any of the additional options. EBS is standard on all specifications.
EBS medium
In addition to the EBS Standard package, EBS Medium adds the following features:
EBS status control
EBS status monitoring via the TEA2+ vehicle electronic system and Volvo Tech Tool.
Auto hold
Brake the truck to a full stop and Auto Hold keeps the last applied braking pressure to hold the truck in position until the driver pushes the accelerator.
Lining wear analysis
Brake lining warning – calculates the remaining mileage available with the current brake linings (only for disc brakes).
Automatic parking brake release
The parking brake is released when the driver pushes the accelerator pedal and a gear is selected (only I-Shift gearbox).
Additional options:
In addition to the program packages there are the following options:
Stretch brake
Enables the driver to request pulse braking of the trailer. The brake is then automatically activated and the risk of jack-knifing is minimised.
ESC (Electronic Stability Control)
The brake stability system applies the brakes individually on each wheel, thereby providing stability for the entire vehicle combination and counteracting jack-knifing, rollover and trailer swing. ESC fulfills the legislation of Electronic Vehicle Stability Control, and is available for 2- and 3-, 4- and 5-axle vehicles.
Emergency brake light
When panic braking from speeds above 50 km/h, the brake lights flash four times per second.
Hydraulic retarder
Gearbox-mounted compact retarder with a max effect of 440 kW.
Volvo Dynamic Steering
Active steering system with torque overlay. Delivers more steering force at low speeds, reduces steering kicks and keeps the steering wheel straight forward when braking on split friction. The steering wheel returns automatically to neutral position both when driving forward and when reversing. Volvo Dynamic Steering is now available for all axle configurations, including trucks with dual front axles. It’s also available in combination with individual front suspension.
Pusher axles
Available in fixed and actively steered variants for both tractors and rigids. Axle load: 4.5, 7.5 or 9 tonnes.
Tag axles
Available in several configurations – fixed with single or dual wheels, self steered or actively steered. Axle load: 7.5, 9.5 or 10 tonnes.
Tandem Axle Lift
Allows the rearmost drive axle on the tandem bogie to be disengaged and raised, to reduce fuel consumption and turning radius. By pushing a button on the dashboard, the driver can raise the axle when the truck is unloaded. When the truck is loaded, the axle automatically lowers itself and engages. Tandem Axle Lift is available for 6×4 and 8×4 configurations (with a tandem bogie) equipped with disc brakes.
Axle configurations Electric
Tractor: 4x2, 6x2, 6x4
Rigid: 4x2,6x2, 6x4, 8x2, 8x4
All axles are air suspended
Data - everything you'll need. Download data sheets in PDF format for the Volvo FM from the following links.
Features depicted may not be standard or available for all equipment levels and powertrain options.
